BiPAP

Closed Circuit

NIV / Oxygen Therapy

for COVID-19

Closed Circuit
Open Circuit
e.g Anesthesia Ventilator Oxygen Mask, HFNC, ICU Ventilator, CPAP, BiPAP
Operating Principle Exhaled gases are recycled after CO2 rmoval Exhaled gases are let out

In Open Circuit configuration ~99% of the inlet oxygen is wasted. Thanks to the closed circuit concept, this device immensely conserves oxygen. Whereas a Hi-flow Oxygen cannula or conventional BiPAP requires Oxygen inlet of more that 30L/min, our device requires a mere 0.5 L/min

Modes of Operation

Standard Oxygen Mask

High Concenration Oxygen Mask

CPAP
BiPAP

To begin with this device can operate as standard oxygen mask delivering 100% humidified and warmed gases at 30 to 50% FiO2. If demand arises, the FiO2 can be further increased to 90% by adjusting the inlet gas mixture. If required the Airway pressures can be increased to levels provided by CPAP and BiPAP devices. All this at a mere 0.5L/in O2 inlet


Operational Videos

Features

On Patient

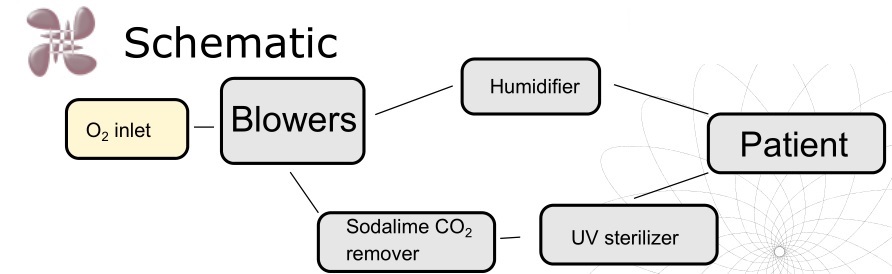

Schematic

Features & Benefits


Specification

Inlet

FiO2

Bi-level Pressure and Flow

UV Chamber

Soda lime container

Humidifier

System Weight

Power Supply

Display

Sensor
